Sugar Land Gate and Fencing
Gate Operation Systems & Fencing
Complete demo and remodel of Gate Operation Systems, key pads, and the replacement of 60+ linear feet of barbed wire chain link and wrought iron entry/exit fencing.
Project Type
Gate & Fencing Installation
Location
Sugar Land, Texas
Scope
60+ Linear Feet of Fencing
Project Overview

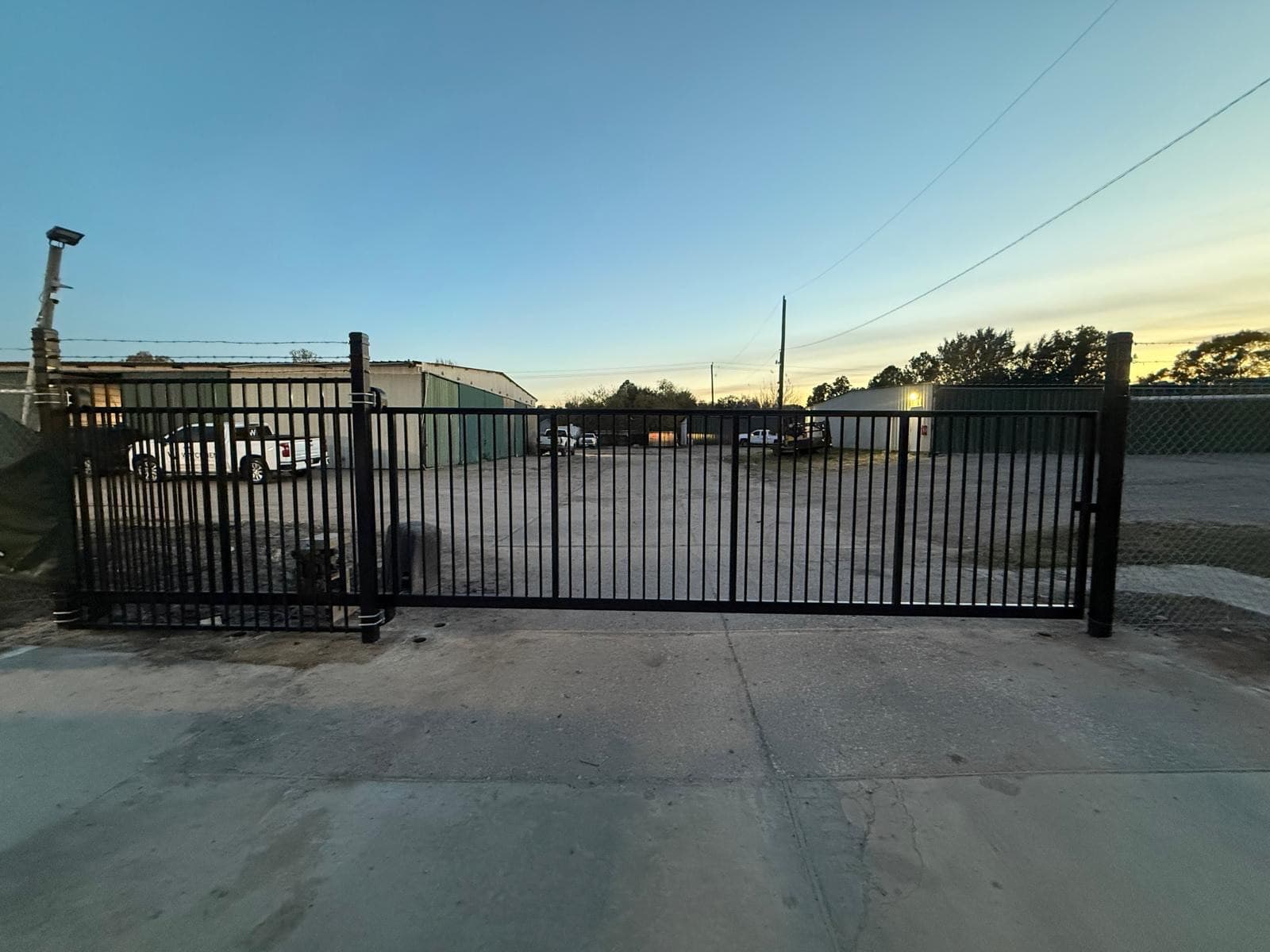

Iron Cross Commercial Construction fabricated and installed a 20-foot iron rod sliding gate with a 6-foot tail, including gate catch. The cantilever gate system features a complete track assembly and support posts designed for smooth and reliable sliding operation.

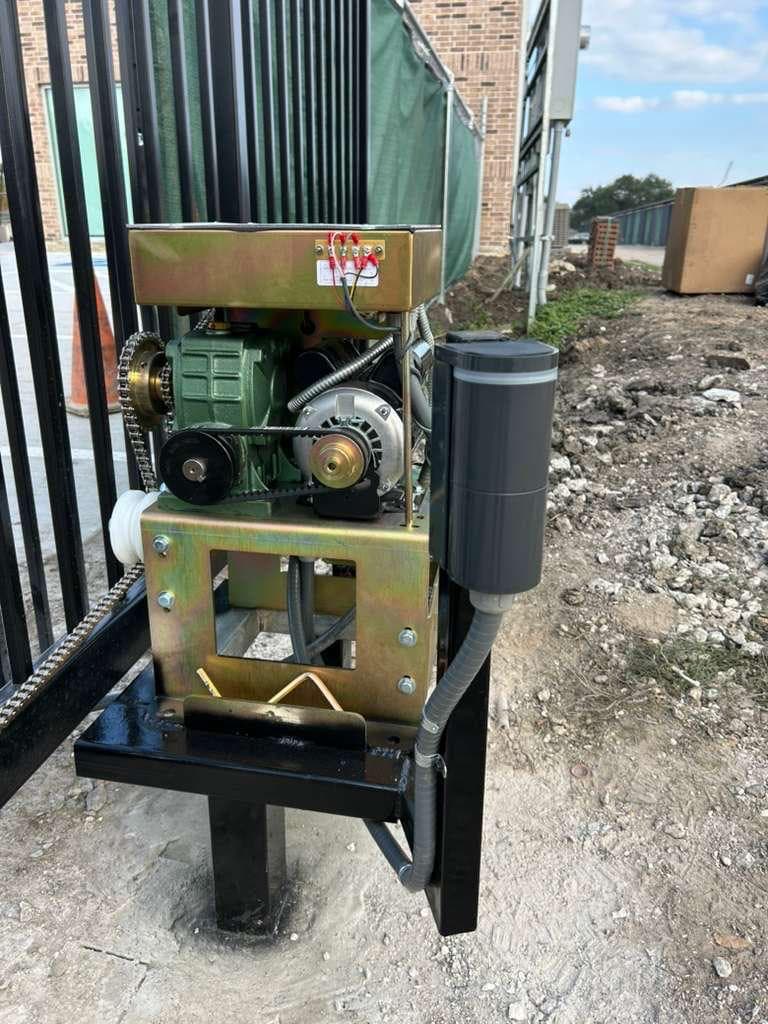

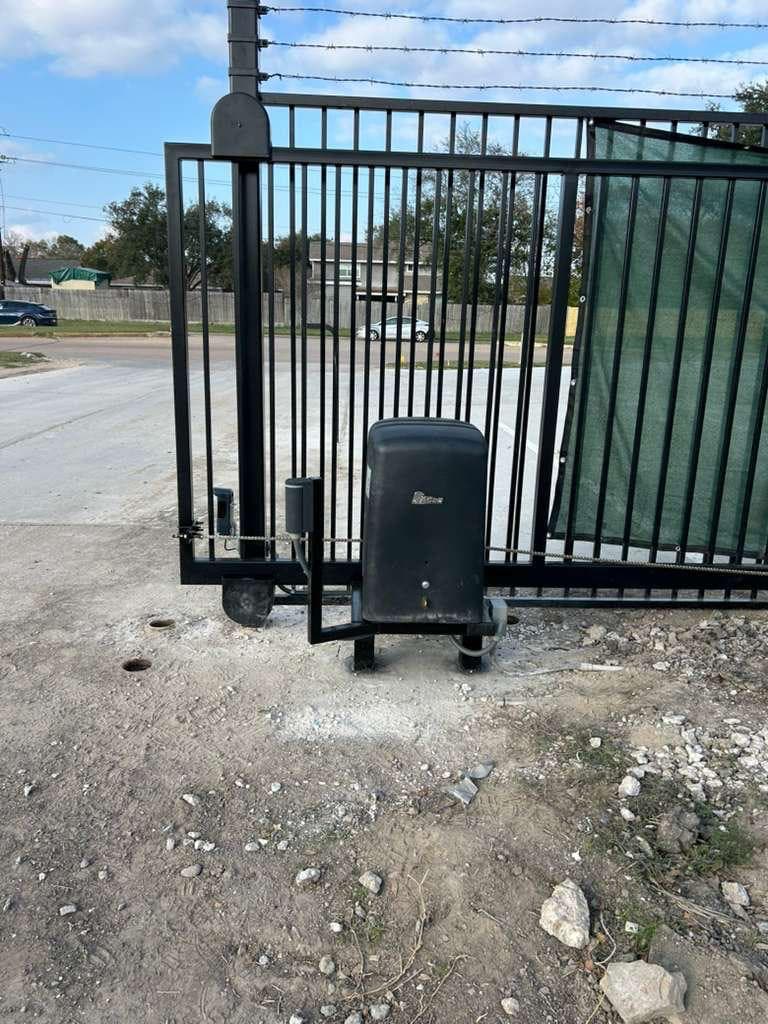

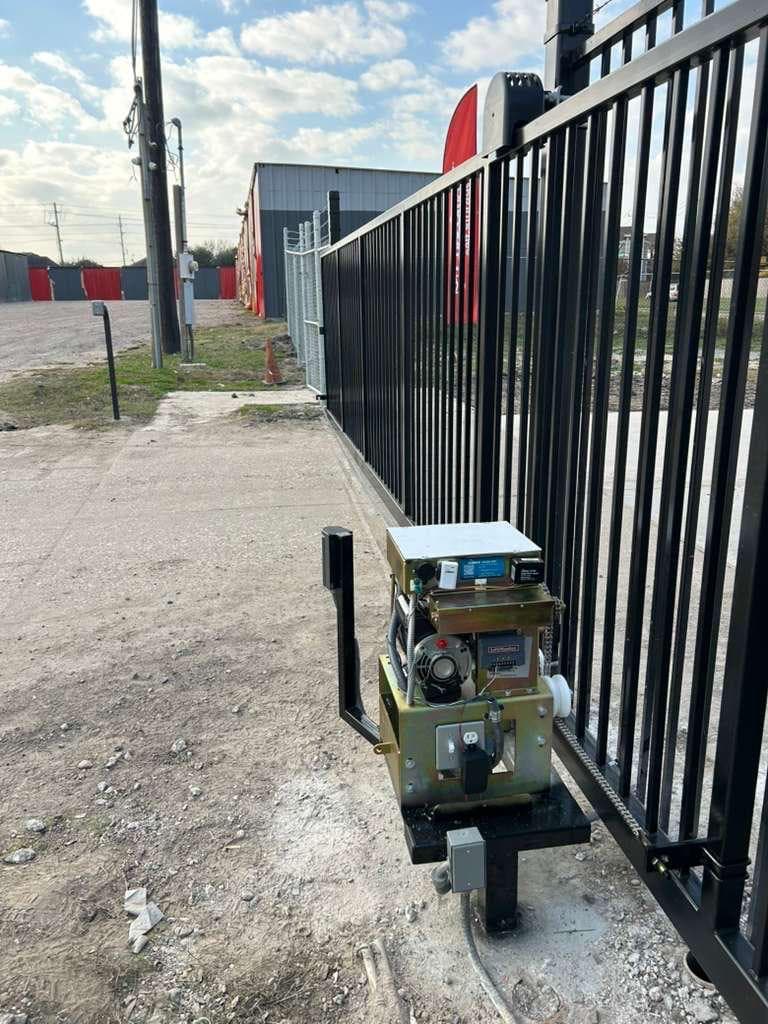

An automatic gate operator was installed on a reinforced concrete pad and equipped with required safety sensors. Dual access keypads were mounted at entry and exit stations on posts with new concrete footings, along with a vehicle detection solution installed with a dedicated mounting post.
Electrical work included new conduit and electrical wiring routed from the main power source to the gate operator. Concrete pads were formed, poured, and finished for the gate operator and keypad stations. Additionally, approximately 60 linear feet of 9-gauge, 6-foot plus 1-inch chain-link fencing with barbed wire top was installed.
Project Gallery
